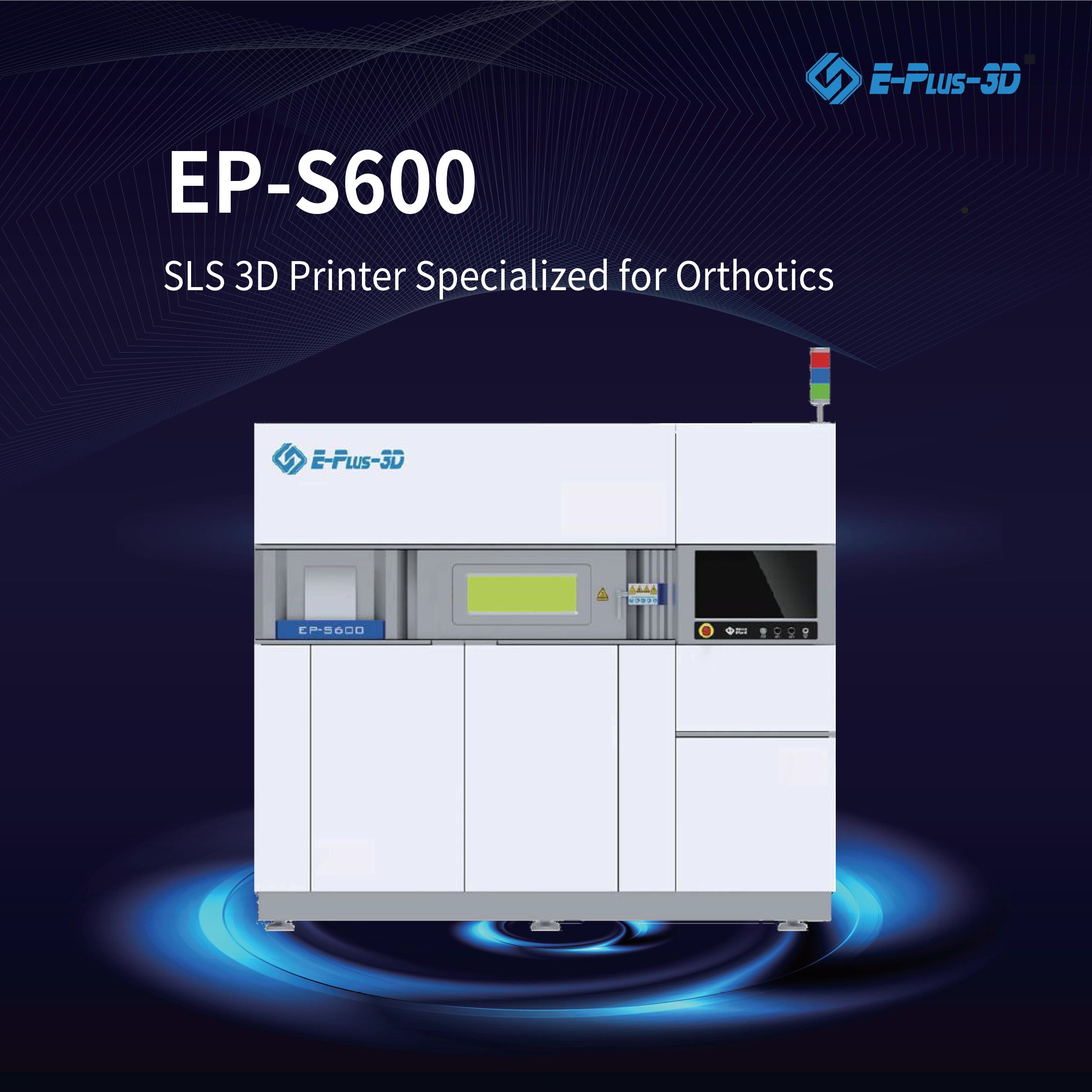

EP-S600 SLS 3D Printer
Selective laser sintering 3D printer
Highlights:
Building Chamber Size 420 x 380 x 600mm
Offers large build size with High Performance & High Efficiency
Fully meets the personalized needs of the rehabilitation & medical industry
Software:
Eplus3D Printing Software
HIGH PERFORMANCE & EFFICIENCY
- With a building cylinder of 420 x 380 x 600 mm, the machine can print almost all sizes of orthotics.
- Average printing time for a single orthotic is within 11 hours, with one machine capable of manufacturing 400-450 orthotics per year.
- Advanced high-speed optical system, perfectly matched with a 55W CO2 laser, allows a scanning speed of 15 m/s.
- High material reuse rate and minimal generated waste, saving printing materials effectively.
INTELLIGENT OPERATION & USER-FRIENDLY
- Visualized printing process and automatic generation of printing reports, allowing easy tracking of the process.
- Capability for one-click printing and convenient operation, with remote control available on your phone.
SAFE & RELIABLE
- Dust-free process, with the entire powder processing and pickup occurring in the powder cleaning platform.
- Gas in the cabin is treated by multi-stage filtration and adsorption to ensure harmless discharge.
What can EP-S600 print?
- Machine: EP-S600
- Process: Polymer Powder Bed Fusion (PPBF)
- Material: PP
- Size: 148 x 100 x 65 mm
- Printing time: 8 hours
- Application: Healthcare
Technical Specifications
| Building Volume | Dimension | Material | Machine Weight |
|---|---|---|---|
| 420 x 380 x 600 mm | 2480 x 1415 x 2160 mm | PP and its composites | 1600 kg |
| Layer Thickness | Laser Power | Scanning Speed | Max. Chamber Temperature |
| 0.1 – 0.3 mm | CO2 Laser, 50W and 120W optional | Max. 15 m/s | 130°C |
| Power Supply | OS System Support | Thermal Field Control | Temperature Regulation |
| AC 380V, 50/60Hz, 16A, 6.5 kW | Windows 7/Windows 10 | Independent four-zone temperature control system | Continuous real-time building surface temperature monitoring |
| Control Software | Output Data Format | ||
| EPControl, EPHatch | STL, .OBJ, .STEP or other convertible file |
For a detailed technical overview, download the PDF spec sheet for the EP-S600 SLS 3D Printer.
