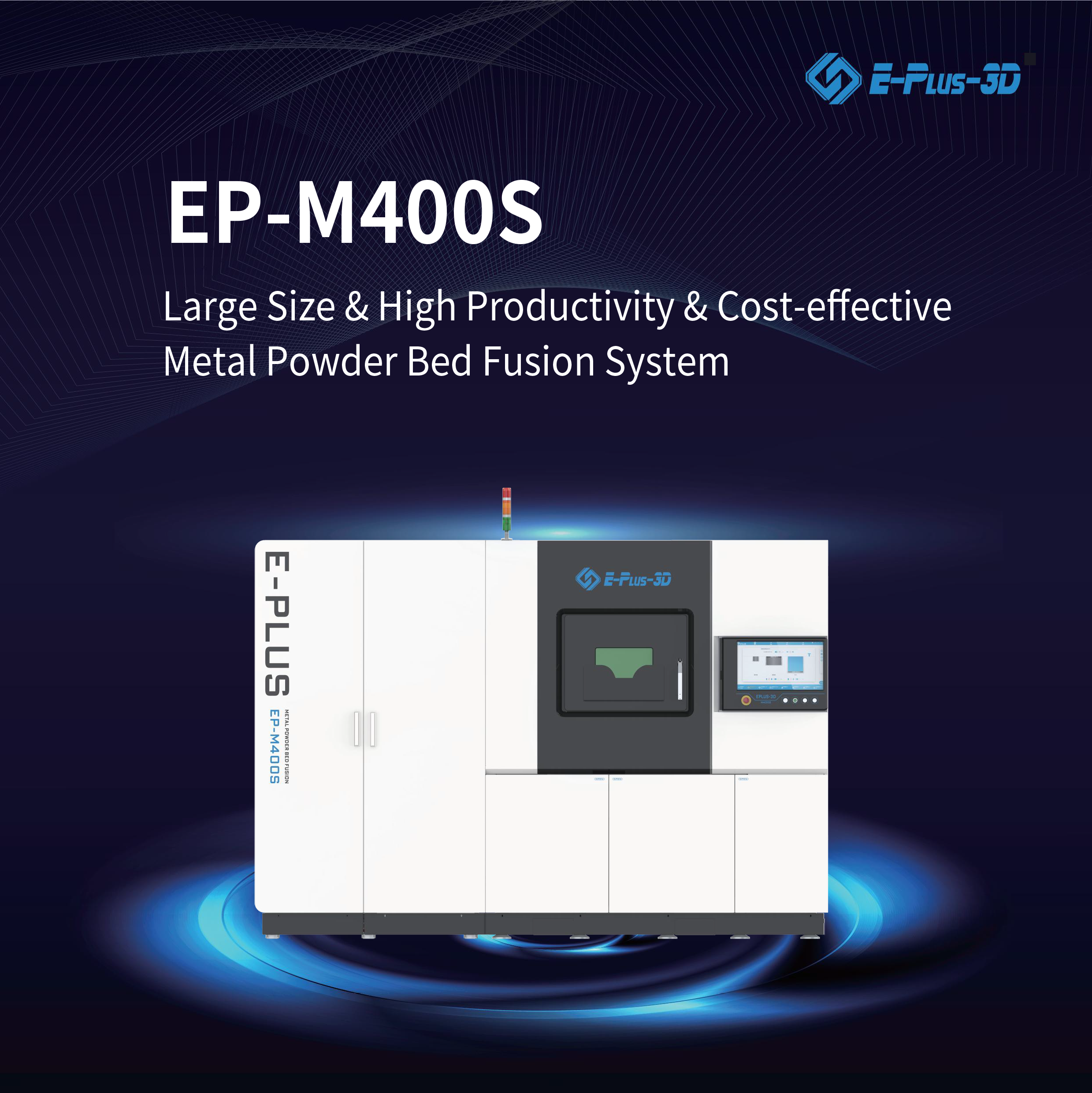

Eplus3D EP-M400S Metal 3D Printer
EP-M400S is available in four configurations: single, dual, triple and quad laser，offering the flexibility to print materials such as titanium alloy, aluminum alloy, nickel-based alloys, maraging steel, stainless steel, cobalt chrome and other materials. EP-M400S is suitable for the direct manufacturing of large-size, high-precision, high-performance components in aerospace and other industries.
HIGH QUALITY
- Three-stage filtration system with blowback function to remove fume, equipped with permanent filter element.
- Stable beam and power control to prevent porosity, micro-cracks, and non-fusion defects.
- Optimized gas flow design for uniform printing of full-format parts.
HIGH EFFICIENCY
- Supports four different printing configurations: single, dual, triple, and quad laser.
- Independently developed software for optimized scanning strategies, reducing processing time.
REAL TIME MONITORING & HIGH SECURITY
- Real-time monitoring of working environment and air source for safety.
- CE and FDA laser safety certifications ensure high safety standards.
- Designed to prevent mis-operation, electric shock, fire, waste, and pollution.
- Closed system design for both powder usage and recovery processes.
HIGH INTELLIGENTIZATION & AUTOMATION
- User-friendly interface with automatic one-click printing and pickup function.
- Displays build job information and traceable printing parameters report.
What can EP-M400S print?
- Machine: EP-M400S
Process: Metal Powder Bed Fusion (MPBF)
Material: Titanium Alloy
Application: Aerospace
Technical Specifications
| Machine Model | Build Volume (X x Y x Z) | Optical System | Spot Size |
|---|---|---|---|
| EP-M400S | 400 x 400 x 450 mm (15.75 x 15.75 x 17.72 in) | Fiber Laser 1 / 2 / 3 / 4 x 500 W (700 W and 1000 W optional) | 70 – 120 μm |
| Max Scan Speed | Layer Thickness | Theoretical Print Speed | Material |
| 8 m/s | 20 – 120 μm | Up to 190 cm³/h | Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy |
| Power Supply | Gas Supply | Oxygen Content | Dimension (W x D x H) |
| 380 V, 50 / 60 Hz, 12.5 ~18 kW | Ar / N₂ | ≤ 100 ppm | 3530 x 1700 x 2800 mm |
| Weight | Software | Input Data Format | |
| 5000 kg | EPControl, EPHatch | STL or other Convertible File |
For a detailed technical overview, download the PDF specsheet for the EP-M400S Metal 3D Printer.
