SPECTRAL

Discover how the 3ntr Sequoia printer can elevate your manufacturing capabilities. Our team at AM Futures is here to help you explore the right solutions for your unique production needs.

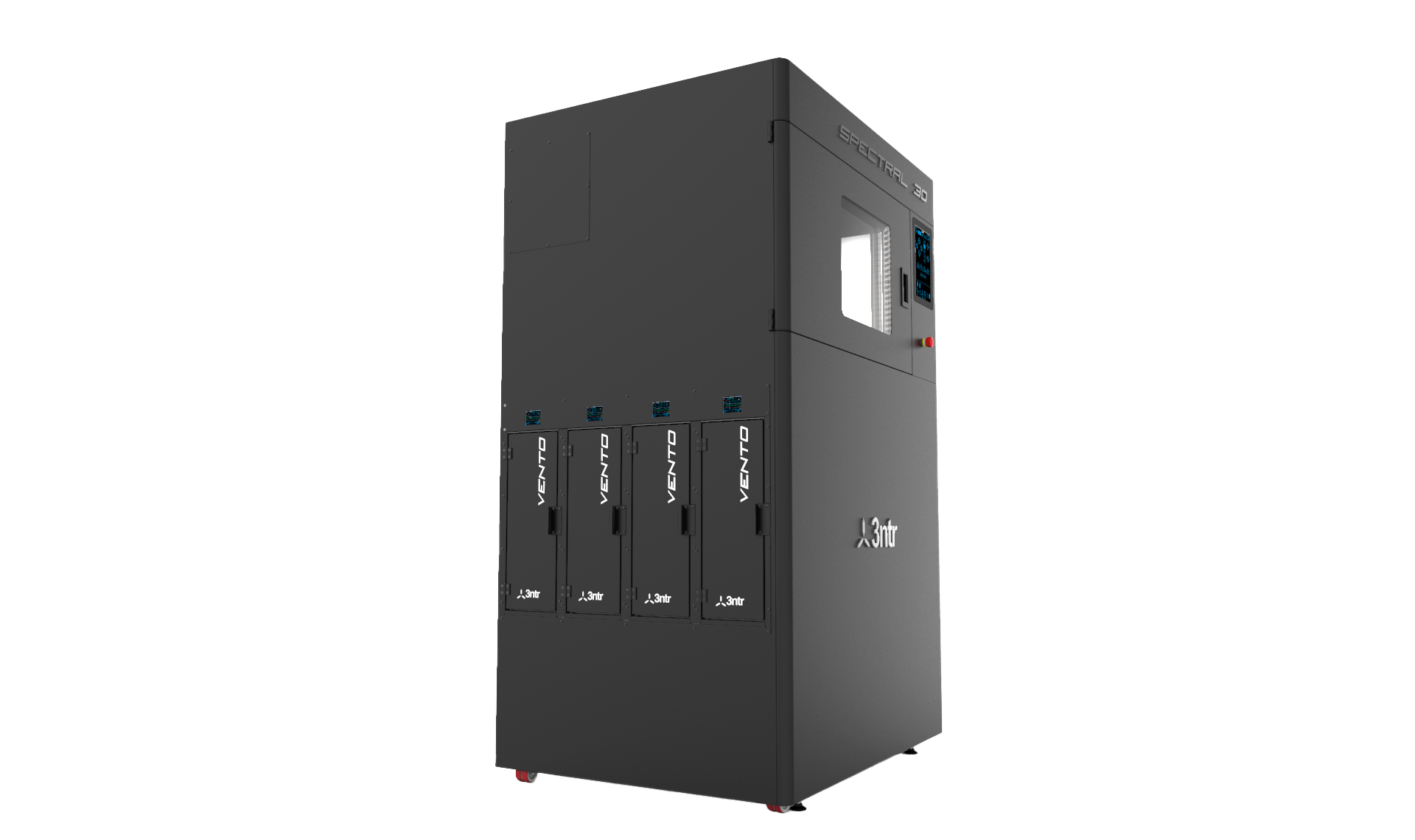

Spectral 30

The Spectral 30 is the 3ntr platform designed for the most complex markets, addressing extreme challenges in manufacturing while looking to the future. With advanced temperature control systems, it guarantees high-performance superpolymers like Peek, Ultem, and PPS with exceptional functionality and aesthetics.

Request Information

Spectral 30

Spectral 30 Features

High-Temperature 3D Printing

The Spectral 30 offers maximum thermal performance with high-performance polymers. It reaches chamber temperatures for Ultem™ in less than 30 minutes, while the nozzles can touch peak temperatures in less than 3 minutes, offering superior capabilities in the industry.

Advanced Material Handling

With its 4 VENTO units, the Spectral 30 ensures proper material drying with minimal energy, protecting filaments over time from contamination, while other machines in the market do not support such performance with multiple extruders at these temperatures.

Technical Specifications

Max Print Volume Nozzles Max Temperature Precision XY Min/Max Layer Thickness Dimensions & Weight
300x300x300 mm 4 500°C / 250°C 0.005 mm 0.1 / 0.6 mm 1158(L)x882(P)x1788(H) mm, 400 Kg

Continuous Monitoring

With a built-in webcam and intuitive operator panel, the Spectral 30 allows for remote monitoring and detailed reporting of the printing process via SSI, ensuring that operators have full control at all times.

Material Compatibility

The Spectral 30 handles all PEEK, PEKK, PEI, PAEK, and PPSU variants with soluble supports or breakaway solutions, ensuring compatibility with a broad range of advanced materials for future production needs.

Request More Information

For further details on how the Spectral 30 can transform your production capabilities, contact us.
