Good adhesion of your print to the printbed is a must in 3D printing!

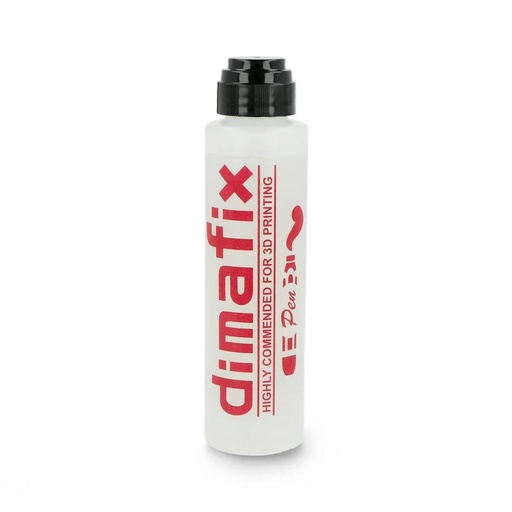

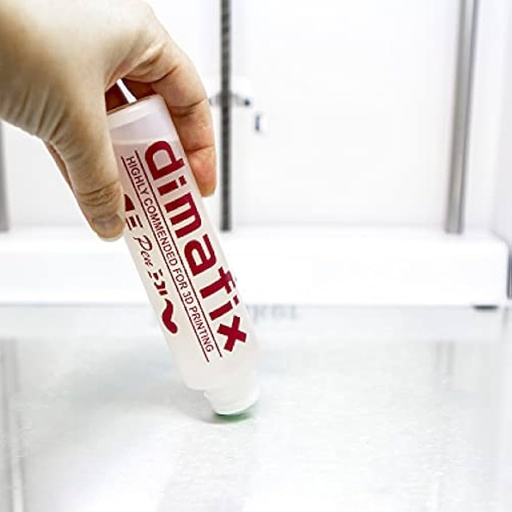

In order to keep your object fixed during printing and avoid warping, there is now DimaFix – Pen.

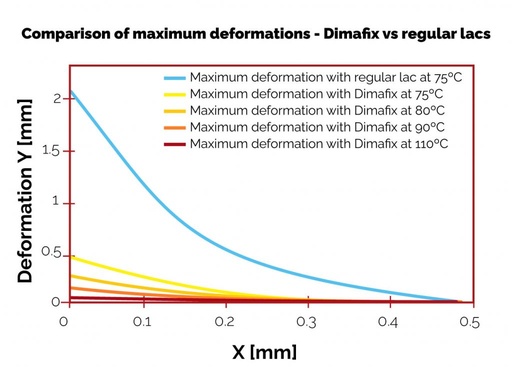

DimaFix Pen is a new product based on the Dimafix – Fixative Spray (an aerosol spray adhesive for 3D printers

with a heated printbed, which prevents warping of large-scale objects).

Dimafix – Pen maintains the same adhesion properties as the Dimafix adhesive aerosol spray that offers a strong bond

between the first layer and the build plate when the bed is heated above 60ºC.

Below 60ºC Dimafix becomes inactive, so prints can easily be removed from the build plate.

DimaFix – Pen provides a strong bond between glass and plastic that is easy to break when needed.

Dimafix is completely water soluble, so cleaning the build plate is an easy process.

The Dimafix – Pen can be used more than 100 times and does not contain any gas.

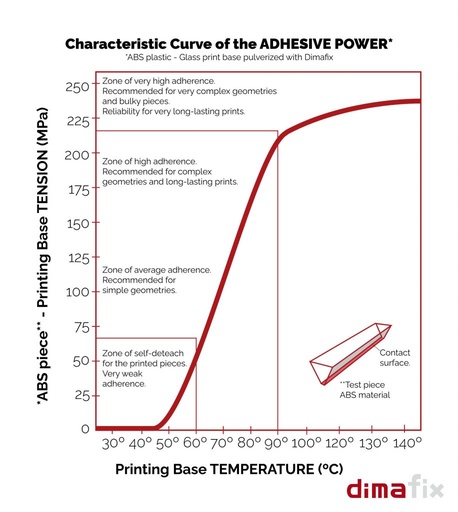

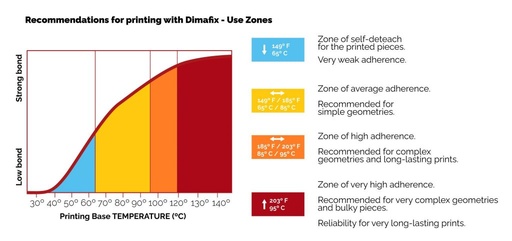

Different print bed temperature results in different levels of adhesion:

Below 60ºC: Low adhesion, the objects can be detached from the plate.

60 – 75ºC: Average adhesion, for simple geometries.

75 – 95ºC: High adhesion, for complex geometries and lengthy prints.

Above 95ºC: Very high adhesion, for very complex geometries and very lengthy prints.

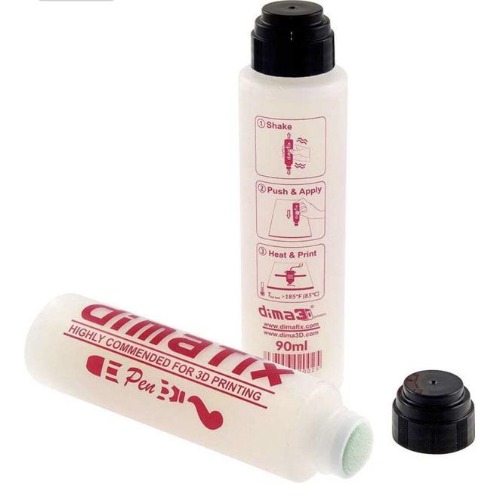

How to use the DimaFix – Pen:

1. Shake the Dimafix – Pen well before use

2. Check if print bed temperature is below 50ºC and apply Dimafix on your print bed

3. Wait a few seconds for the print surface to dray and heat your print bed

4. Keep the print bed temperature above 85ºC during printing

5. After printing, wait for the print bed to cool down and remove your printed object from the print bed while it detach itself

Features

• Avoid warping
• Suitable for all types of materials (especially ABS filaments)
• Strong bond during printing
• Once printed, the piece will detach automatically
• Recommended for printing on heated beds
• Easy to clean, the product is water soluble
• Each pen can allows more than 100 uses

Product export information

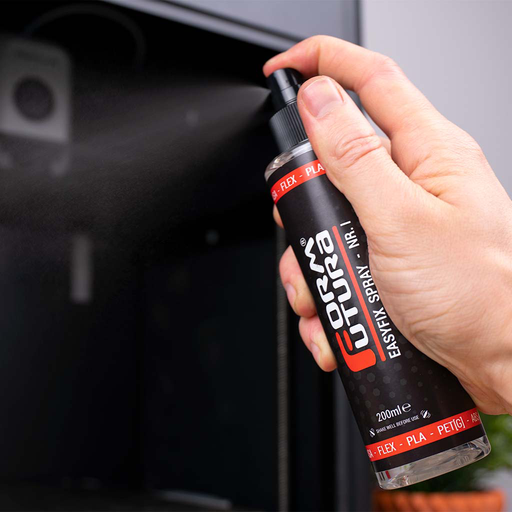

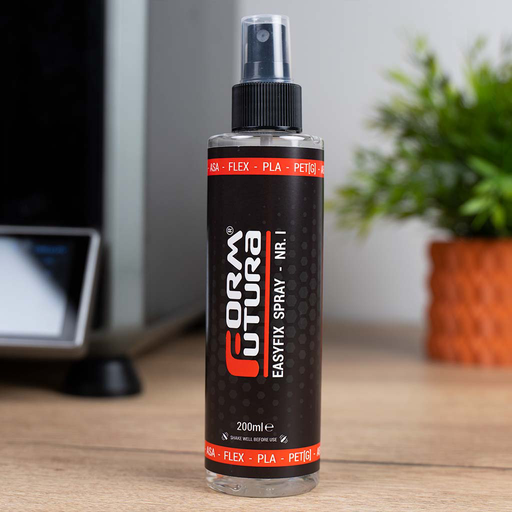

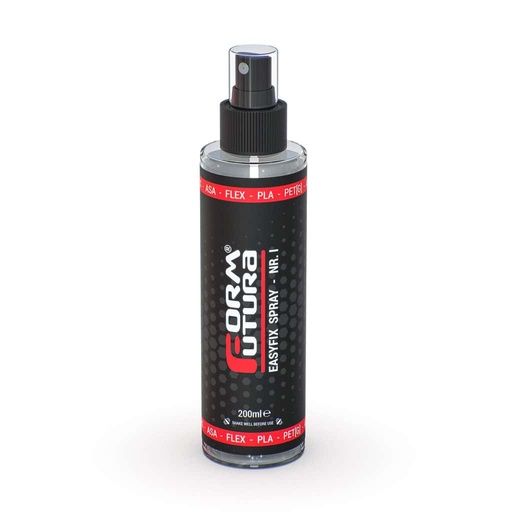

EasyFix – Nr.I is a general purpose build plate adhesive which is specifically engineered to work with, but is not limited to: PLA, PET[G], ABS, ASA, HIPS, and numerous FLEX filaments.

EasyFix adhesives are engineered to glue firmly to a heated build plate, making an object stick firmly to the build plate. On the other hand it also has excellent release properties when the build plate is cold. This makes it very easy to remove a printed object from the build plate while reducing the risk of damaging the build plate and printed object in the process.

How to use EasyFix 3D printing adhesives:

There is an EasyFix adhesive solution for 3D printing with nearly any type of 3D printer filament.

• Shake the bottle with EasyFix well before using.
• Make sure that the build plate of your 3D printer is clean and at room temperature before applying EasyFix to the print bed of your 3D printer.
• Remove the build plate from your printer to ensure you do not cause vapors to cover other parts of your printer.
• Simply press the top of the bottle lightly several times to spray the adhesive evenly onto the build plate
• Make sure to cover the entire print surface.
• After printing, the build plate can be cleaned by applying water to the surface.

Wait till the print platform of your 3D printer is cooled down to room temperature before removing your 3D printed object. EasyFix 3D printing adhesives have excellent release properties making your 3D printed object come loose from the 3D printer’s build platform when cooled down. If it still is difficult to remove the 3D printed object you can apply a small amount of warm water to the printed object and the print surface. Let the water creep underneath the 3D printed object before slowly removing it.

A build platform that is prepared with EasyFix adhesive can be used for multiple 3D prints.

Product Video

Storing your EasyFix adhesives:

EasyFix 3D printing adhesives should be stored upright in a cool dry place away from direct sunlight. It is important to store your EasyFix buildplate adhesive in an upright position. When storing, please make sure that the bottle of your EasyFix adhesive is fully closed.

Cleaning the build plate of your 3D printer:

Rinse the build plate with warm water to wash off any excess adhesive. Alternatively, you can use a cloth or a sponge soaked in warm water to do so.

Product export information:

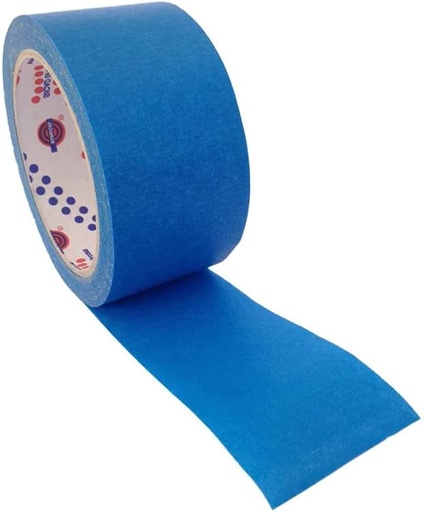

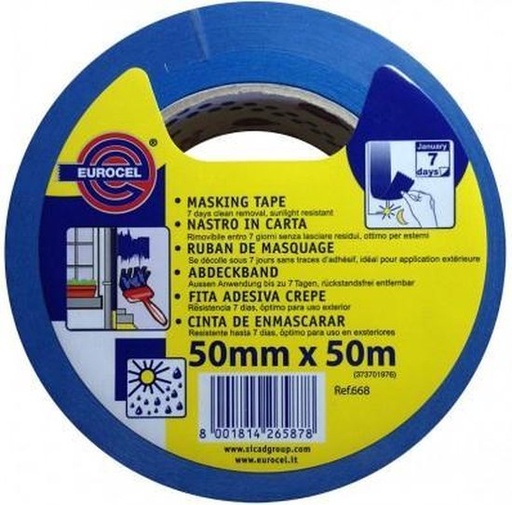

Eurocel Blue Masking Tape (MSK 6085) is an acrylic water based blue tape, which has an excellent adhesion to the (heated) platform of any desktop 3D printer, and your PLA 3D prints will stick very well to the surface of this Eurocel Blue Masking Tape. Still, your PLA printed objects can easily be removed from this tape.

Eurocel Blue Masking Tape has a thickness of 0.13mm and it comes in a very convenient width of 50mm. This ensures that taping your print bed with this blue tape is only a matter of seconds. One roll of Eurocel Blue Masking Tape contains 50 meters of tape.

Features

• Good adhesion level to (heated) platform
• 3D prints stick very well to the surface/texture of this tape
• Prints can easily be removed from the surface of this tape
• Easy removal without adhesive residue
• Removable without breaking
• Easy unwinding
• Hand tearable

Product export information

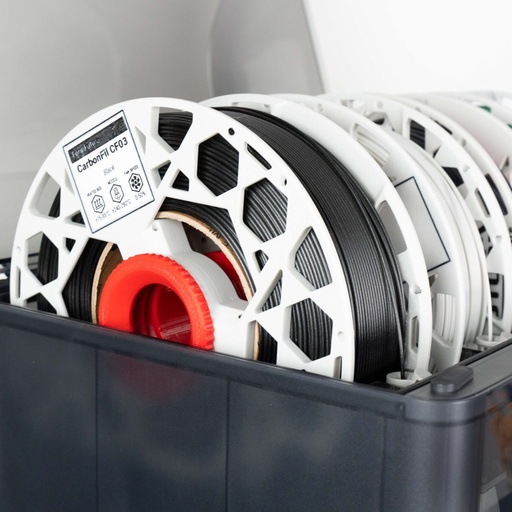

FormFutura ReFill System

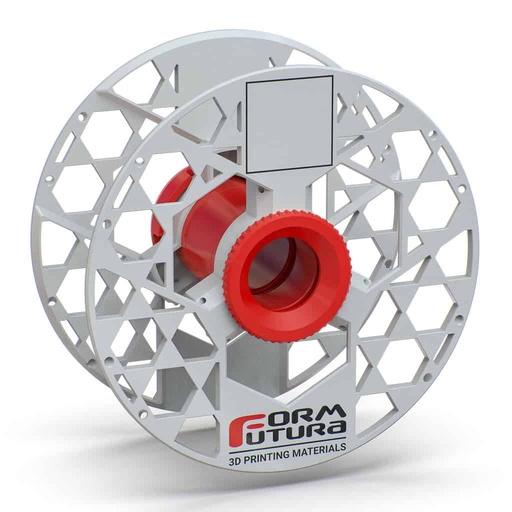

The FormFutura ReFill System, is the ultimate solution for efficient and sustainable 3D printing. Our innovative system consists of ReFill Flanges and a flange connector, designed to seamlessly integrate with ReFill filament coils such as ReFill PLA, ReFill PETG, ReFill ColorMorph, CarbonFil CF03, BioWood, and Premium PLA CF03.

The FormFutura ReFill system is fully 3D printed in-house, allowing us to manufacture on demand and ensure high quality. This approach minimizes your carbon footprint by reducing the need for material transportation, as everything is produced locally and efficiently.

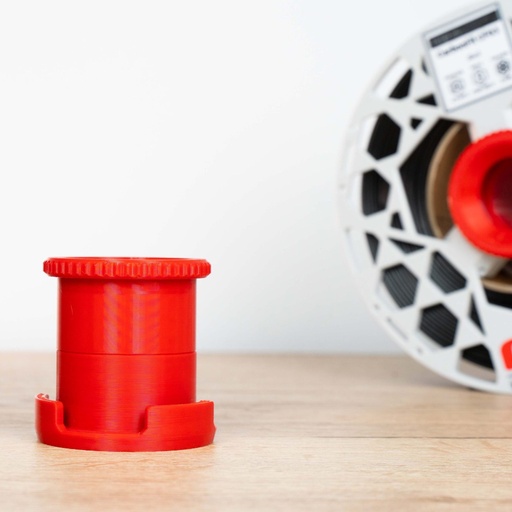

Lightweight and Sturdy Flanges

The FormFutura ReFill Flanges are engineered to be both lightweight and robust, ensuring they can withstand the demands of your 3D printing projects. Specifically designed with the BamBu Labs AMS in mind, these flanges provide a reliable and efficient solution for your filament needs. Their design ensures longevity and durability, making them a cost-effective choice for any 3D printing enthusiast or professional.

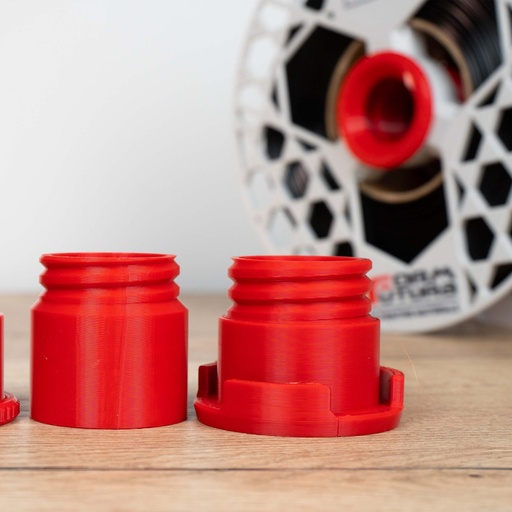

Quick and Easy Changes with Flange Connectors

The Velcro strips have become completely optional thanks to their advanced flange connectors. The male and female connectors are easily screwed into the core of the flanges, providing a secure and stable connection. This design allows for rapid and effortless changes, enabling you to switch between different filament types without any hassle. The FormFutura ReFill System streamlines your workflow, saving you valuable time and effort.

Don’t throw the Velcro strips in the rubbish, as they are used to store your coils when not in use.

Essential Cardboard Core Retention

To ensure the optimal performance of your filament coils, it is crucial to never remove the cardboard core. The core maintains the structure of the coil, allowing the filament to stay in place and turn smoothly. This feature guarantees that your filament remains tangle-free and ready for use, enhancing the overall printing experience. Keeping the cardboard core intact also ensures consistent feeding of the filament, reducing the risk of print failures and ensuring high-quality results.

Compatibility

The FormFutura ReFill System offers versatile compatibility with two flange sizes to accommodate different filament coil weights.

• 200mm Flanges: Compatible with filament coils ranging from 0 to 1kg. Fits in the Bambu Labs AMS
• 245mm Flanges: Suitable for filament coils ranging from 0 to 2kg. To use with the FormFutura Modular Spool Holder.

This ensures you have the right flange size for your specific filament needs, providing flexibility and convenience for all your 3D printing projects.

Product Video

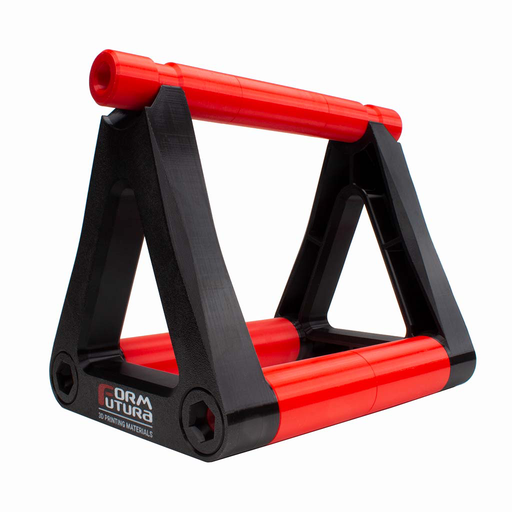

The Modular Spool Holder is designed to simplify your 3D printing experience by ensuring effortless spool unwinding for spools ranging from 500g to 8kg. Compatible with virtually every filament spool on the market. Whether it’s from FormFutura or any other brand—this is your one-size-fits-all solution.

Perfect for Hobbyists, Print Farms, and Production Companies The Modular Spool Holder is ideal in combination with printers like BambuLab, Prusa, Creality, and other FDM printers. Its ergonomic design allows for quick spool swaps, making it an excellent choice for 3D print farms and production environments where time is critical.

Key Features and Benefits

• Universal Compatibility:
  Supports spools up to 360mm in diameter and 180mm in height, including heavy-duty 8kg spools.
  No spool on the market is incompatible with the Modular Spool Holder.
• Unwinding Without Friction:
  The horizontal, round modular bar allows the spool to unwind through both spool rotation and
  bar rotation. This results in smooth operation, even with heavy spools up to 8kg. The innovative
  design has been rigorously tested under maximum loads, ensuring uninterrupted filament
  feeding.
• Modular and Expandable:
  Extend the spool holder to store multiple spools simultaneously.
  This provides a practical and organized solution for production environments where
  various filaments are used consecutively.
• Space-Saving Flexibility:
  Place the holder anywhere around your 3D printer. Whether your workspace is compact
  or expansive, the holder ensures convenient and accessible placement.
• Environmentally Friendly:
  Fully 3D-printed with no waste generated during production. It requires no supports,
  making it an eco-conscious choice. Made entirely from PETG, the Modular Spool Holder is
  recyclable. At the end of its lifecycle, you can return the product, and 100% of the plastic
  will be recycled into new filament through our Recycling Program.

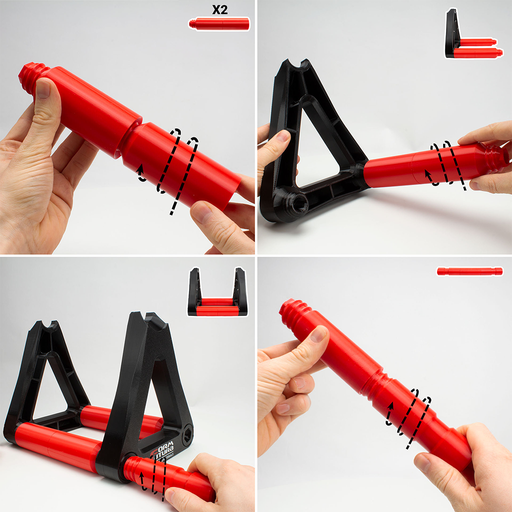

Quick and Easy Assembly

Delivered as a simple DIY kit, the Modular Spool Holder requires no external tools and can be assembled in minutes, as showcased in the video below.
